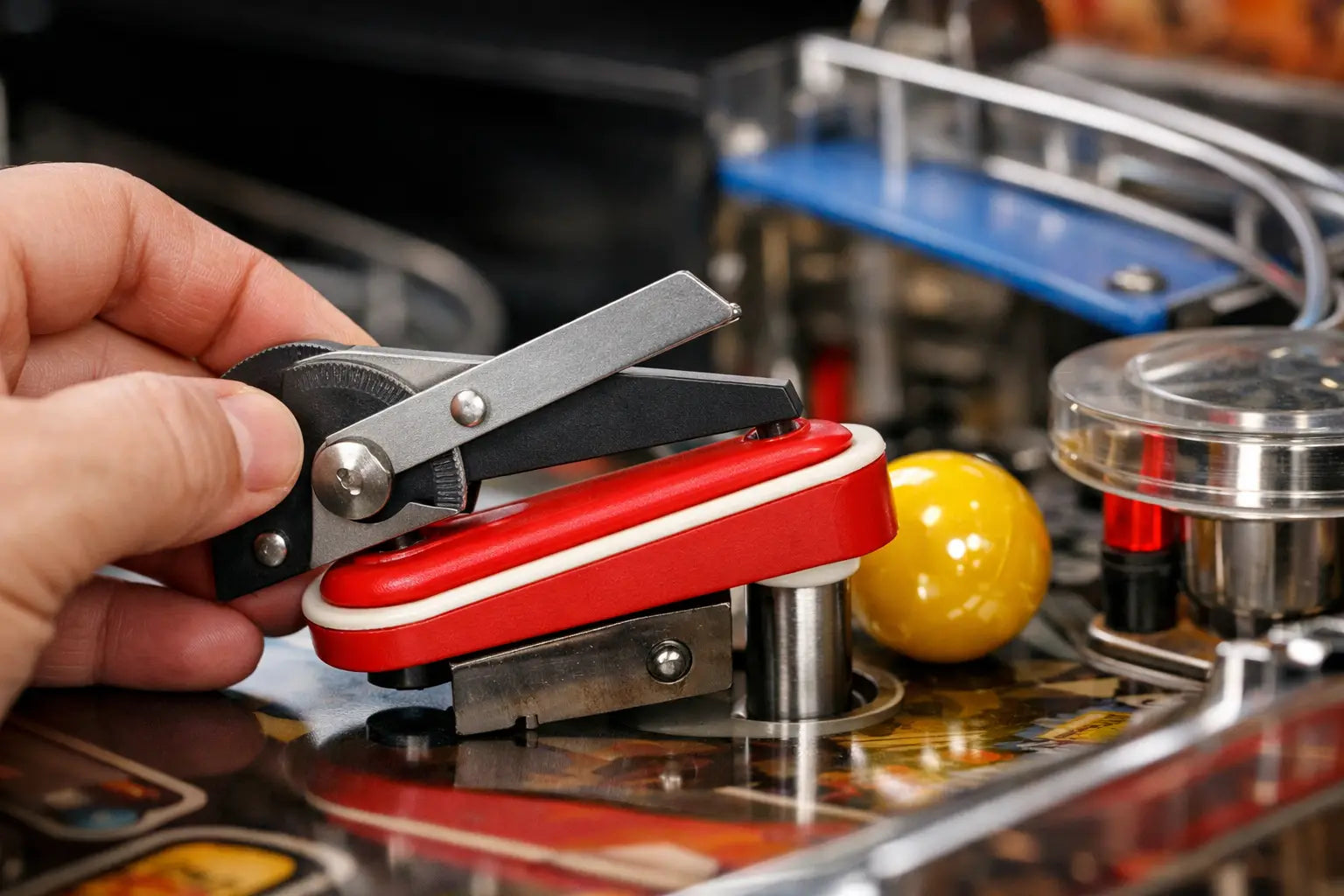

A pinball flipper angle tool solves a frustrating setup problem: getting both bats to the same correct position without judging the gap by eye. A flipper can look close, feel close, and still change the way a shot returns, a lane feeds, or a live catch behaves. For collectors, operators, and technicians, repeatable flipper calibration is not cosmetic work. It is part of making a machine play as intended.
The right tool gives you a fixed reference at the playfield, so adjustment becomes a measured process instead of a series of guesses. That matters when servicing one machine at home, but it matters even more when maintaining several machines that need to play consistently.
Why Flipper Angle Changes the Game
Pinball flippers are simple mechanisms with very visible results. A small difference in rest position changes the bat's starting point, its relationship to inlanes and outlanes, and the timing a player expects. On modern machines, that difference can affect tight ramps, center shots, post passes, and how reliably the ball is held on the flipper.
An angle that sits too high can make a machine feel cramped or unpredictable. The ball may meet the flipper earlier than expected, and shots can lose their familiar geometry. An angle that sits too low can leave more space near the drain, alter the feel of cradles, and make the machine play softer or less controlled.
There is no single angle that should be forced onto every pinball machine. The correct target depends on the manufacturer, the playfield design, the flipper assembly, and the machine's intended setup. Some games have factory references, templates, or service procedures. Others need comparison with known original geometry. The goal is not to invent a preferred angle. The goal is to reproduce the correct one accurately.
That is why a purpose-built reference tool is more useful than a ruler, a piece of cardboard, or a visual estimate. It turns a variable adjustment into a repeatable one.
What a Pinball Flipper Angle Tool Should Do
A good flipper angle tool should sit where the bats and playfield meet, giving both flippers the same reliable reference. It should be quick to position, easy to read, and designed around the actual dimensions and working conditions of a pinball machine.
Generic angle gauges can be accurate, but they are often awkward for this job. They may measure an angle in isolation without helping you establish a consistent relationship between the flipper bat and the playfield. A smartphone app can show a number, but its result depends on where the phone is placed, how the cabinet is pitched, and whether the surface is truly level. Neither option is as direct as a tool made specifically for bat calibration.
A dedicated tool should also support a practical service sequence. You need to establish the playfield pitch and side-to-side level first, then calibrate the flippers against that stable reference. If the machine is not level, an otherwise correct flipper setting can look or feel wrong because the ball is already favoring one side.
PinbalLevels developed the Bat Level as the original pinball level for this exact task: providing a simple reference for playfield setup at 6.5 degrees and, most importantly, making bat calibration faster and more repeatable.
Start With the Playfield, Not the Flippers
Flipper adjustment should never be the first correction on a machine that has just been moved, installed, or serviced. Cabinet legs settle. Floor surfaces vary. Even a careful operator can change pitch slightly while making a leveling adjustment.
Set the machine in its normal playing location. Check left-to-right level and establish the intended playfield pitch before touching a flipper clamp. For many machines, 6.5 degrees is a common setup point, but factory guidance and game-specific requirements always take priority. A steeper or shallower pitch changes ball speed and can change how you interpret flipper behavior.
Once the playfield is stable, place the flipper angle tool in its working position. Confirm that the tool is sitting cleanly, without resting on debris, raised plastics, or an uneven playfield feature. The reference must be stable before it can be useful.
The Bat Level 2.0 version uses suction cups to stay secured to the playfield while you adjust the bats. This is especially useful when you are working alone or when repeated movement of the tool would slow down the job. Remove the suction cups when checking the actual playfield pitch and level, since they are intended for secure bat adjustment rather than pitch measurement.
A Practical Flipper Calibration Process
Start with the machine powered off unless your service procedure specifically requires power. Lift the playfield safely, inspect the flipper mechanisms, and make sure you are not trying to correct an angle problem caused by worn parts.
Look for loose crank connections, damaged bushings, worn links, coil stop wear, excessive side play, bent parts, or a slipping flipper clamp. A flipper that moves on the shaft will not hold its setting. A worn assembly can also create a false impression that the angle is wrong when the real issue is mechanical play.
Return the playfield to its normal position and put each flipper into its rest position. Place the pinball flipper angle tool against the bats according to its reference surfaces. Loosen the flipper clamp only enough to rotate the bat on the shaft. Make the smallest correction possible, then tighten the clamp securely.
Do not rotate both bats at once and assume they are matched. Set one, verify it against the tool, then set the other. Recheck the first flipper after tightening the second. A small movement during tightening is common, particularly on older assemblies or clamps that have seen years of service.
After both bats are aligned, manually operate each flipper to confirm free movement and proper return to rest. Then power on the machine and test several familiar shots. Watch the ball's contact point on each flipper, test cradles, and pay attention to whether left and right play feel balanced. The tool establishes the physical reference; play testing confirms that the complete mechanism is performing correctly.
Accuracy Is More Than the Tool
A precise tool cannot compensate for an unstable machine or worn hardware. The best result comes from using the tool as part of a complete setup routine.
Keep the playfield surface clean where the tool contacts it. A small piece of dirt, a loose rubber fragment, or a raised protector can affect placement. Make sure the bats are seated normally at rest, with no obstruction underneath. Confirm that the cabinet has not shifted after you level it, especially in an arcade location with uneven flooring.
It is also worth separating flipper angle from flipper power. If a game feels weak, the answer may be coil strength, voltage, EOS switch operation, cabinet wiring, or mechanical friction. Raising a flipper angle to compensate for weak shots only creates a second problem. Correct the cause first, then return to the proper bat reference.
For machines with different flipper lengths or unusual layouts, use the reference that matches the game rather than applying one setting across every machine. Consistency is the objective, not a universal number.
When to Check Flipper Alignment
Flipper angle should be checked after a flipper rebuild, coil replacement, shaft or bushing work, playfield removal, cabinet relocation, or any time a bat has slipped. It is also a smart check before an event, league night, commercial opening, or private sale.
Operators benefit from a fast calibration method because a machine that receives heavy play can change gradually. Collectors benefit because a carefully restored game deserves a setup that matches the quality of the work. For technicians, a dedicated tool creates a repeatable process across multiple service calls.
The useful habit is simple: level the machine, inspect the mechanism, set the bats to a stable reference, tighten carefully, and test under play. When every adjustment starts from the same reference, you spend less time chasing feel and more time enjoying a machine that plays the way it should.
